CASE STUDY
Manufacturing Facility
Name

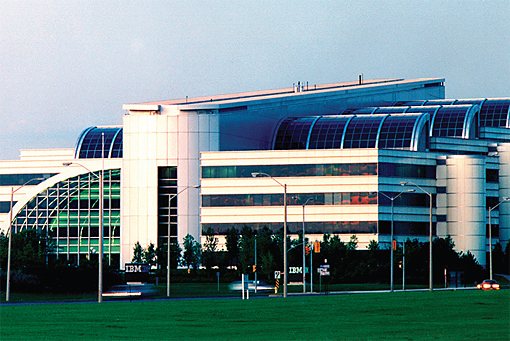

IBM Canada Bromont, Quebec plant
Location
Bromont, Quebec CA
Facility Size
High technology facility specializing in electronic component assembly and functional testing
Issue
Replace the old chillers with more environmentally friendly chillers.
Solution
(3) 1000-ton Daikin single compressor centrifugal chillers and (1) 2500-ton dual compressor centrifugal
chiller
IBM Canada Saves Energy and the Ozone Layer with Daikin Chillers
Getting rid of CFCs paid off in a big way for IBM Canada. As a concerned corporate citizen, IBM Canada was one of the first to respond to the Montreal Protocol's request to reduce CFC usage. To that end, they began to replace the old chillers in their semiconductor packaging plant in Bromont, Quebec, with more environmentally friendly chillers.
The Bromont plant is a high technology facility specializing in electronic component assembly and functional testing. It provides the top quality microchips and other components used in most IBM products and many OEM customer products. One of the busiest facilities in the IBM family, the factory provides a controlled environment—with precise air temperature and humidity control—to protect the integrity of their products.
In keeping with their corporate pledge to reduce and eventually eliminate all ozone depleting chemicals in their plants, the IBM Bromont facility began working with representatives from Daikin to develop a strategy and identify options for replacing their existing equipment with more environmentally friendly equipment from Daikin.
The IBM plant had seven 1000-ton chillers and a 350-ton chiller. All these chillers operated using either R-12 or R-11 refrigerants.
One by one, IBM began replacing the chillers with Daikin centrifugal chillers. Soon after the first Daikin chillers began operating, the IBM plant noticed they weren't using as much energy as they usually did. In fact, the activity inside the plant had increased, but the temperature— which is precisely set to provide the optimum manufacturing environment—had not.
As more Daikin equipment was added to the facility, the energy costs continued to decrease. Replacing their old chillers with Daikin ozone-friendly chillers was really paying off for IBM. Next, Daikin representatives proposed replacing two of the existing 1,000-ton chillers with one Daikin dual compressor centrifugal chiller. The Daikin dual machine would provide enough cooling capacity at a lower first cost and lower operating cost than the two existing chillers.
When they added the Daikin dual compressor centrifugal chiller, the lower kW/per ton became a major factor in helping the plant meet its goals for reducing energy consumption. So far, IBM has purchased three 1000-ton Daikin single compressor centrifugal chillers and one 2500- ton dual compressor centrifugal chiller. All Daikin centrifugal chillers use ozone safe HFC-134a refrigerant, and IBM has been extremely pleased with how the equipment has been working.
